The fundamental limitation of 3-axis waterjet cutting is the inability to respond to stream divergence during the cutting process. As water exits the nozzle at velocities exceeding Mach 3, the stream begins to destabilize, widening progressively as it travels through the material. In a 50mm thick stainless steel plate, this taper can exceed 3-5 degrees, creating beveled edges that require grinding, machining, or are simply rejected as scrap.

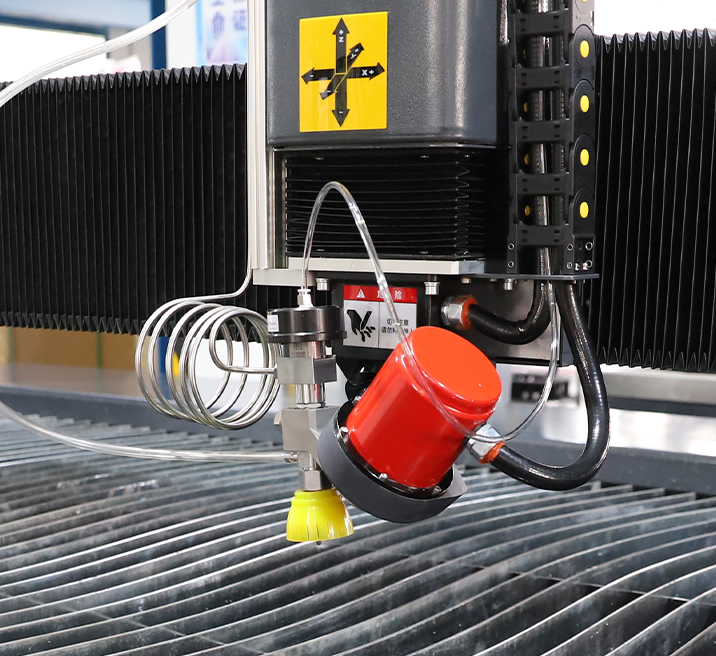

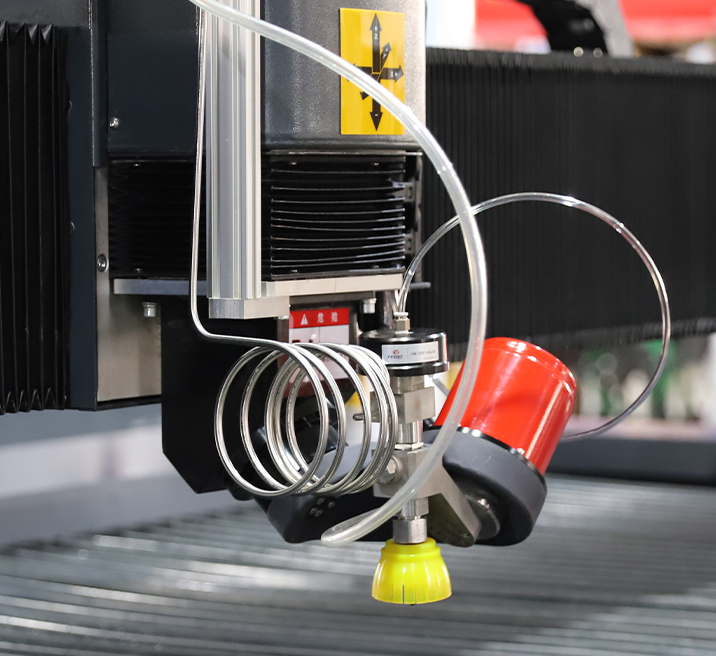

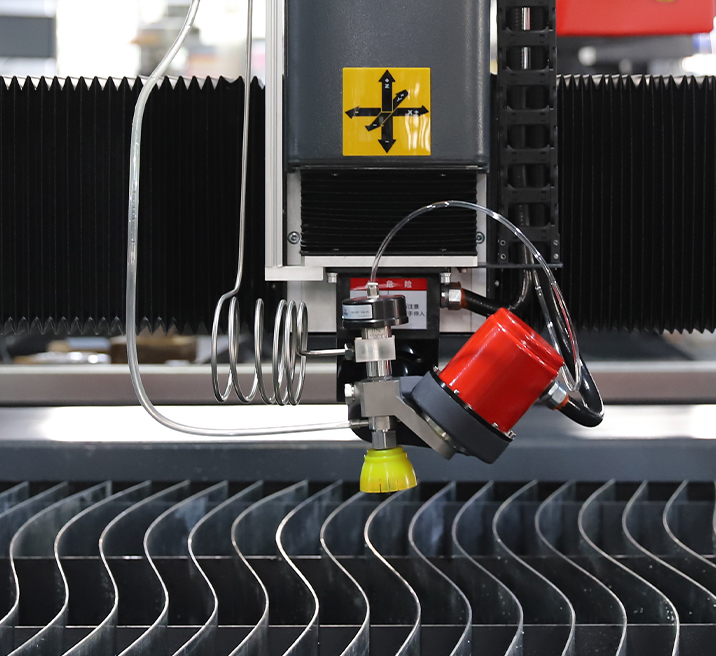

The 5A-Taper10 addresses this through dual-axis tilt compensation. The A-axis provides ±10° of swing in one plane, while the B-axis offers an additional ±10° in the perpendicular plane. This combination allows the cutting head to dynamically angle itself, keeping the water stream perpendicular to the workpiece surface throughout the cut. The system continuously adjusts based on material thickness, cutting speed, and pressure parameters to maintain optimal stream alignment.
The practical result is a dramatic reduction in taper angle—often to less than 0.5° on the cut face. For fabricators previously accepting 2-3° bevels as inevitable, this represents a transformative improvement. Parts emerge from the cutting process with near-vertical walls, reducing or eliminating the secondary machining operations that traditionally consume significant production time.
| Parameter |
Specification |
| Model |
No.5A-Taper10 |
| A-axis Swing Range |
±10° |
| B-axis Swing Range |
±10° |
| Outline Dimensions |
320 × 290 × 314 mm |
| Weight |
10.5 kg |
| Control System |
i-Telli Smart PC Control |
| Target Materials |
Metals, Composites, Stone, Glass |
| Taper Compensation |
Up to 3-5° deflection capability |
The 5A-Taper10 serves diverse applications across multiple industries, with particular strength in the following scenarios:
Stone Fabrication: Countertop production demands precise seam quality that directly affects customer perception. The 5A-Taper10 produces mitered joints, radius edges, and complex inlay patterns with accuracy that minimizes hand finishing while maximizing seam quality. Monument and memorial carving also benefit from precision control over irregular shapes.
Metal Processing: Thick-plate fabrication, structural steel components, and precision-machined blanks all leverage the taper compensation that makes waterjet competitive for applications previously reserved for thermal cutting methods. The i-Telli system's parameter optimization improves cutting speeds on established programs.
Aerospace Composites: The combination of precision and cold-cutting action addresses the stringent requirements of aerospace component fabrication. Carbon fiber reinforced panels, honeycomb structures, and hybrid material assemblies cut cleanly without delamination or thermal damage.
Artistic Glass Work: Stained glass panels, architectural glass features, and decorative glass elements require the precision and material gentleness that the 5A-Taper10 provides. Intricate patterns that would stress brittle materials during mechanical cutting execute cleanly with waterjet technology.
Ceramic Tile Processing: Architectural ceramic installations, custom tile patterns, and precision-fitted bathroom and kitchen surfaces all benefit from the accuracy that 5-axis compensation provides. Complex layouts that previously required careful hand-cutting achieve consistent precision.
For technical consultation on integrating the 5A-Taper10 into your production environment, evaluate your specific material challenges, tolerance requirements, and throughput objectives. The combination of demonstrated taper compensation, intelligent control, and practical physical design positions this head as a compelling upgrade path for shops serious about waterjet precision.
